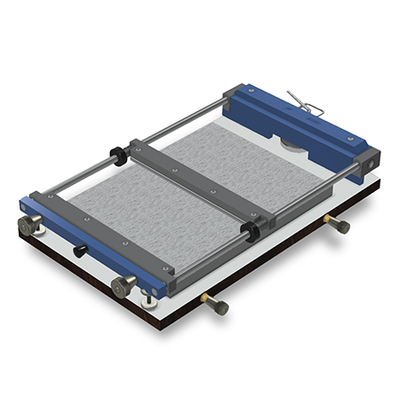

SD360U SMT Stencil Printer

Part Number: SD 360U Clock fast Lead Time: 4 weeks Pdf file Data Sheet

The SD-360U SMT stencil printer is equipped with a holder that has a unique up and down lift system to position the stencil over the prototype PCB. The stencils do not need mounting holes and fixing a stencil is fast and easy.
Pricing Information
Qty:

Unit Price:
$2,398.00

Total: $2,398.00

Customers Who Bought This Item Also Bought

Carousel prev Carousel next

overview

This SMT stencil printer is equipped with a table holding that has a unique system to stabilize the prototype PCB.


Main Features

Stencils do not
need mounting holes
  • Fixing a stencil is fast and easy, no heating of the stencil is required.
  • Positioning of boards are simple with the use of magnetic placeholders.
  • The SMT stencil printer can be used for single as well as double sided PCBs. Even if there are already components on one side.
  • Accurate X, Y and Rotation alignment of the assembly table

specs

Dimensions (L x W x H) 20" x 24" x 6" - 510 x 610 x 140 mm.
Max. Prototype PCB 10" x 14" - 260 x 360 mm.
Max. Stencil 11" x 15" - 275 x 375 mm.
Weight 37lbs - 17kg
